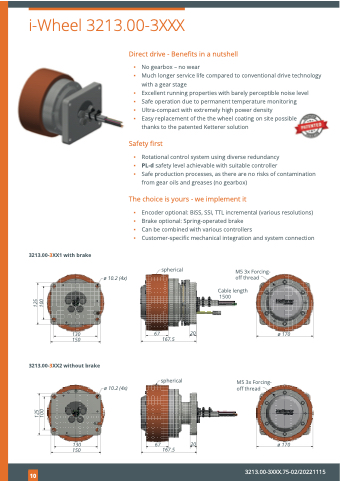

Page 10 - Ketterer Drives – Brochure Wheel hub motors

i-Wheel 3213.00-3XXX
3213.00-3XX1 with brake
130 150
3213.00-3XX2 without brake
ø 10.2 (4x)
spherical
67 20 167.5
spherical
67 20 167.5
M5 3x Forcing- off thread
Cable length 1500
M5 3x Forcing- off thread
1 10
3213.00-3XXX.75-02/20221115
130 150
ø 10.2 (4x)
ø 170
ø 170
Direct drive - Benefits in a nutshell
▪ No gearbox – no wear
▪ Much longer service life compared to conventional drive technology
with a gear stage
▪ Excellent running properties with barely perceptible noise level
▪ Safe operation due to permanent temperature monitoring
▪ Ultra-compact with extremely high power density
▪ Easy replacement of the the wheel coating on site possible
thanks to the patented Ketterer solution
Safety first
▪ Rotational control system using diverse redundancy
▪ PL-d safety level achievable with suitable controller
▪ Safe production processes, as there are no risks of contamination
from gear oils and greases (no gearbox)
The choice is yours - we implement it
▪ ▪ ▪ ▪
Encoder optional: BiSS, SSI, TTL incremental (various resolutions) Brake optional: Spring-operated brake
Can be combined with various controllers
Customer-specific mechanical integration and system connection
125 100 100
125
