Electric box lifter KET-LIFT4BOX for KLT containers, blisters, and other industrial containers

Lift smart, work smart

Electric box lifter KET-LIFT4BOX for KLT containers, blisters, and other industrial containers

The KET-LIFT4BOX is a compact, powerful, and user-friendly solution for efficiently lifting crates and boxes in warehouses, workshops, and production facilities. It is suitable for heavy loads up to 100 kg and 200 kg in demanding environments and contributes to employee relief and shortened reach distances thanks to its automatic electric lifting function.

Efficient, ergonomic box lifting for optimized workflows

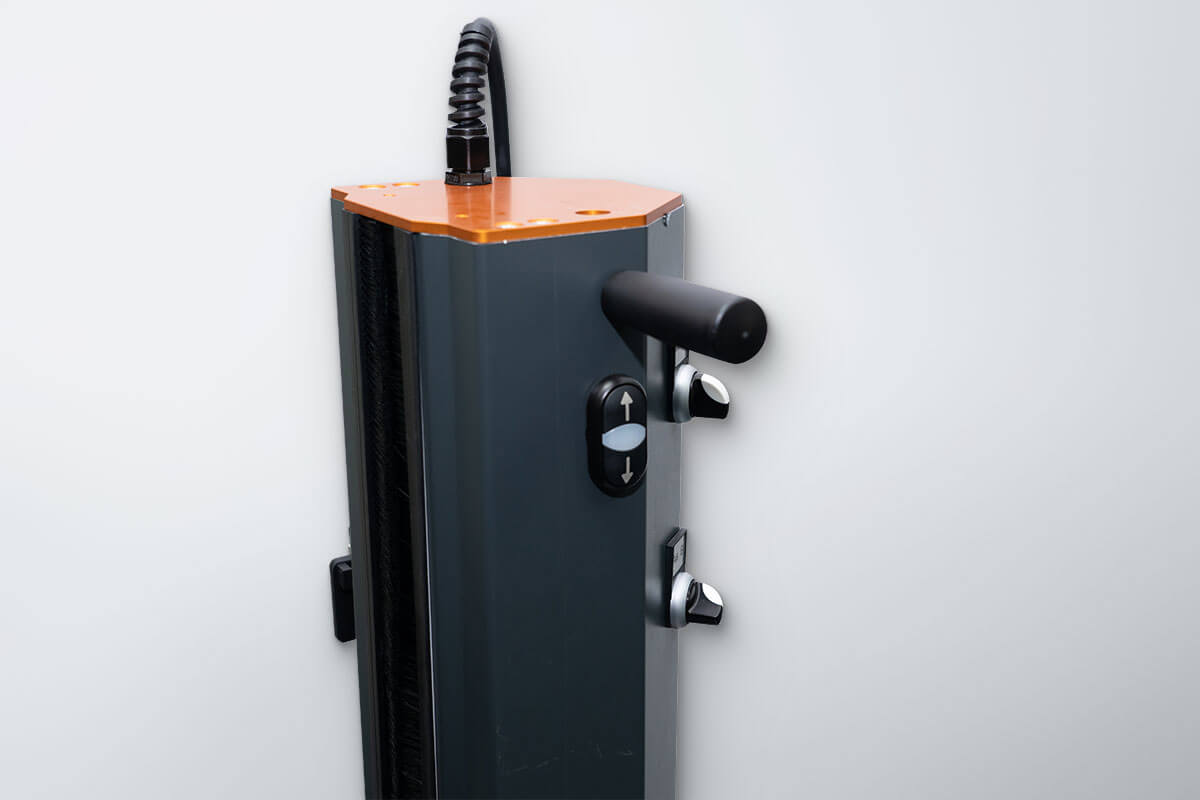

The crate lifting device is designed for front-loading capacities of up to 100 kg and 200 kg and enables ergonomic working through stepless electric container positioning. Positioning can be controlled manually via buttons on the column or in automatic mode with light barriers. Additionally, working heights can be adjusted individually to meet the user's needs.

The device's high stability is ensured by a massive base plate that can be secured to the ground if necessary. For mobile use, the KET-LIFT4BOX features transport rollers and secure handles that facilitate transport and handling.

Furthermore, the KET-LIFT4BOX is characterized by its maintenance-free design, allowing users to focus on their work without worrying about regular maintenance, thus increasing productivity.


Automatic operation - Precise lifting and lowering with light barriers

In automatic mode, KET-LIFT4BOX takes over the lifting and lowering of loads fully automatically, making everyday work easier. The working position can be adjusted effortlessly and without tools using light barriers. As soon as a box is removed from the stack, the KET-LIFT4BOX skillfully raises the next box exactly to the previous level, ensuring a continuous working surface. On the other hand, when a crate is added to the stack, the KET-LIFT4BOX lowers it precisely to the previously set level, enabling optimized material provision.

Technical details

  • Maximum load capacity: 100 kg & 200 kg
  • Adjustment speed: 20 mm/s & 10 mm/s
  • Dimensions: 560 x 640 x 1,125 mm
  • Working height (fork): 110 to 925 mm, other heights available upon request
  • Total adjustment distance: 815 mm
  • Own weight: approx. 65 kg
  • Operation: via hand switch or via automatic mode

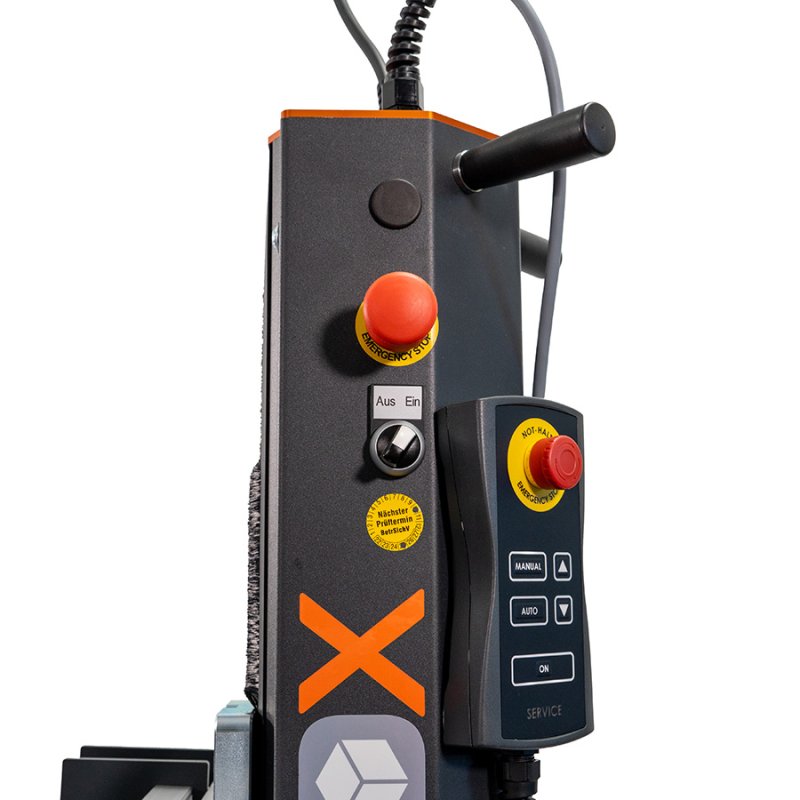

Handlebars

Handlebars

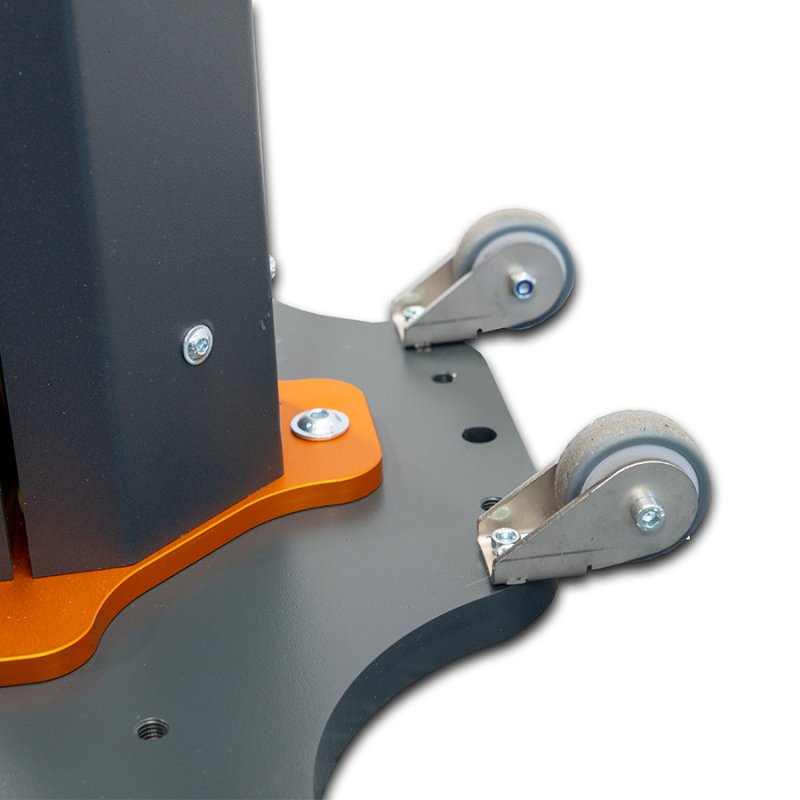

Transport rollers

Transport rollers

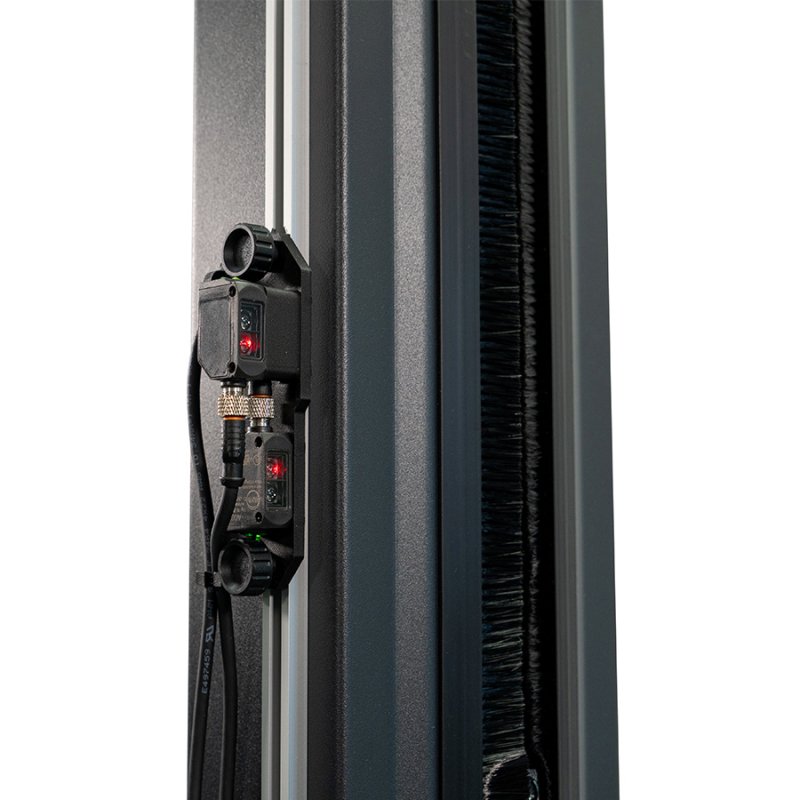

Light bars

Light bars

KET-LIFT4BOX Flyer

Order KET-LIFT4BOX now!
