Angular gear Ket-Bee 200X L-Gearbox
2x Solid shaft
Description

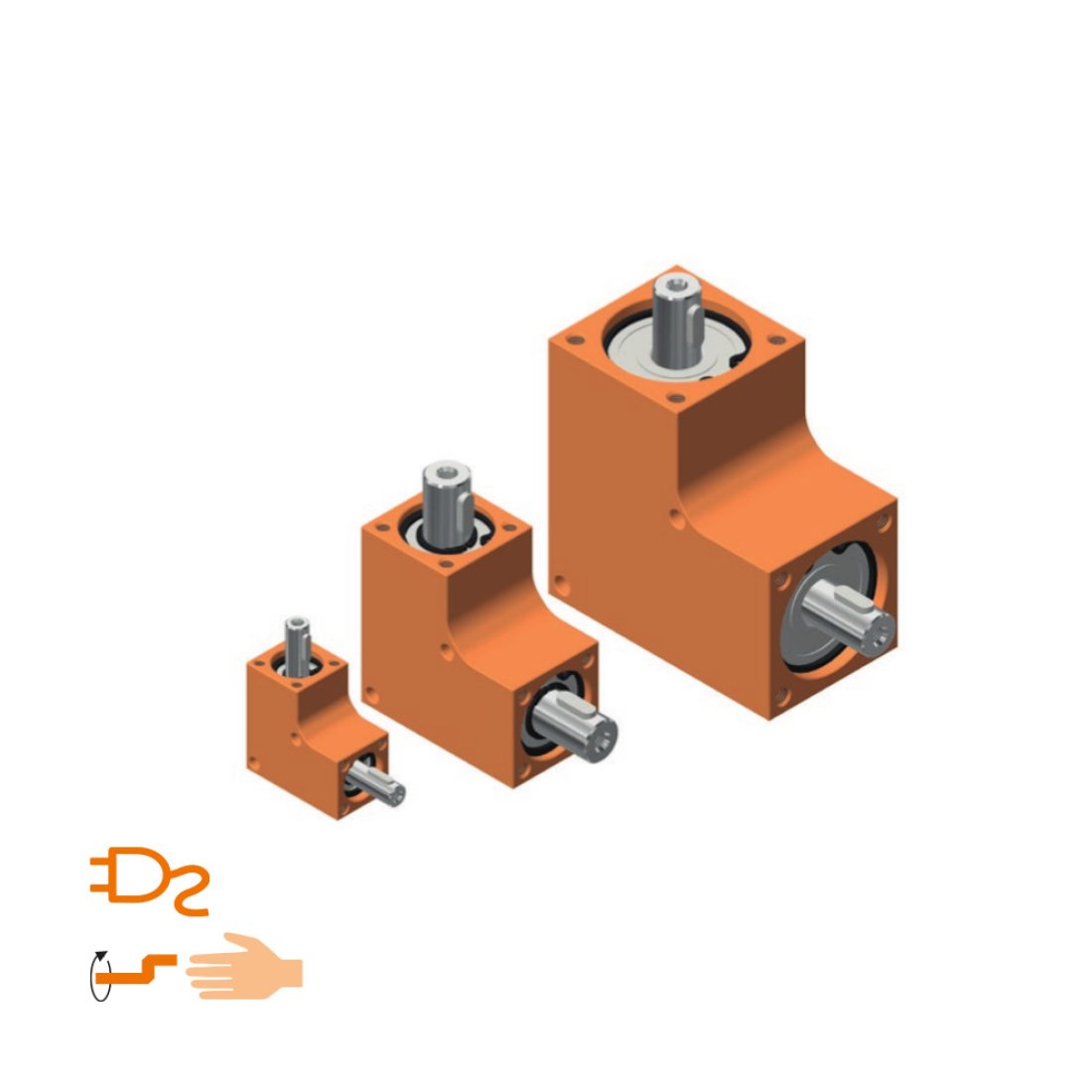

A bevel gearbox family consisting of 8 sizes for versatile use as an angular gearbox. The gearbox is characterised by a compact design with maximum torque, sturdiness and smooth power transmission. The uncom- plicated mounting is made possible by a simple screw fixing.
Special features
- Maintenance-free and silent running
- Steel bevel wheels, case-hardened
- Aluminium housing, anodized (orange or silver)
- Ratio 1:1
- Permitted operating temp. -20°C to +60°C
- Backlash at drive shaft 3° ± 1°
- Duty cycle 20 % at 5 min (1 min ON, 4 min OFF)
- Lifetime of 1000 hours with: - full load and
- input speed of 500 rpm and
- duty cycle 20% with 5 min

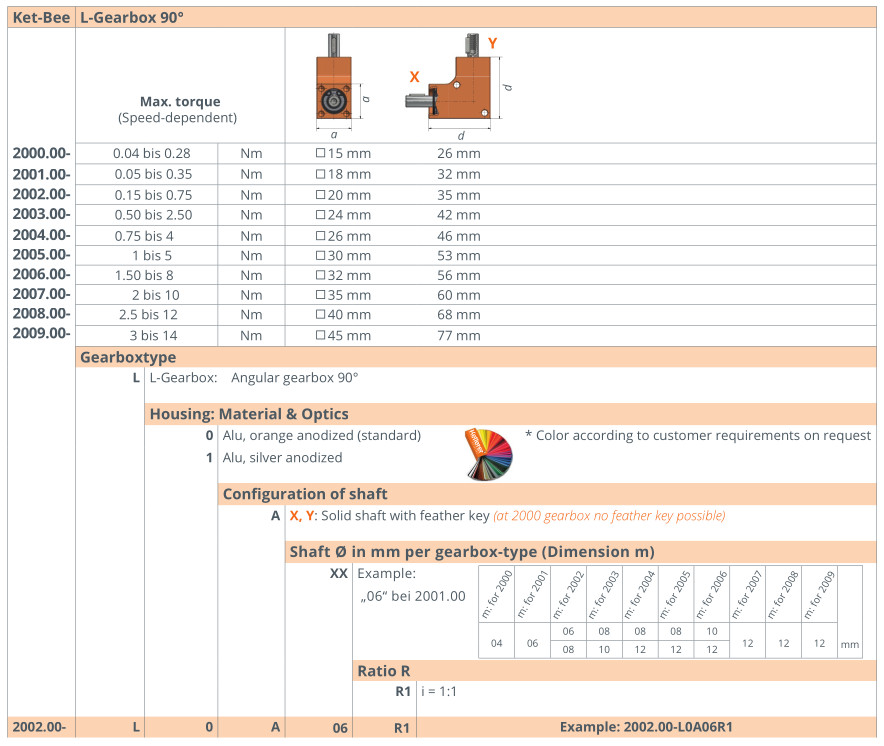

| Item.-Nr. | Shop | Speed n in rpm | Max. torque M in Nm | Radial and axial load
* FR in N FN in N | Part weight in kg | |
| 2000.00-LXAXXR1 | 2000.00-L0A04R1  | 100/500/1000 | 0.28/0.08/0.04 | 48 | 48 | 0.03 |
| 2001.00-LXAXXR1 | 2001.00-L0A06R1 | 100/500/1000 | 0.35/0.1/0.05 | 60 | 60 | 0.05 |
| 2002.00-LXAXXR1 | 2002.00-L0A06R1 2002.00-L0A08R1 | 100/500/1000 | 0.75/0.3/0.15 | 100 | 100 | 0.07 |
| 2003.00-LXAXXR1 | 2003.00-L0A08R1 2003.00-L0A10R1 | 100/500/1000 | 2.5/1/0.5 | 120 | 120 | 0.14 |
| 2004.00-LXAXXR1 | 2004.00-L0A08R1 2004.00-L0A12R1 | 100/500/1000 | 4/1.5/0.75 | 140 | 140 | 0.19 |
| 2005.00-LXAXXR1 | 2005.00-L0A08R1 2005.00-L0A12R1 | 100/500/1000 | 5/2/1 | 240 | 240 | 0.27 |
| 2006.00-LXAXXR1 | 2006.00-L0A10R1 2006.00-L0A12R1 | 100/500/1000 | 8/3/1.5 | 550 | 550 | 0.33 |
| 2007.00-LXAXXR1 | 2007.00-L0A12R1 | 100/500/1000 | 10/4/2 | 550 | 550 | 0.40 |
| 2008.00-LXAXXR1 | 2008.00-L0A12R1 | 100/500/1000 | 12/5/2,5 | 600 | 600 | 0.57 |
| 2009.00-LXAXXR1 | 2009.00-L0A12R1 | 100/500/1000 | 14/6/3 | 750 | 750 | 0.80 |
* The values of FR apply only when FA = 0 N
The values of FA apply only when FR = 0 N
Gearboxtype |

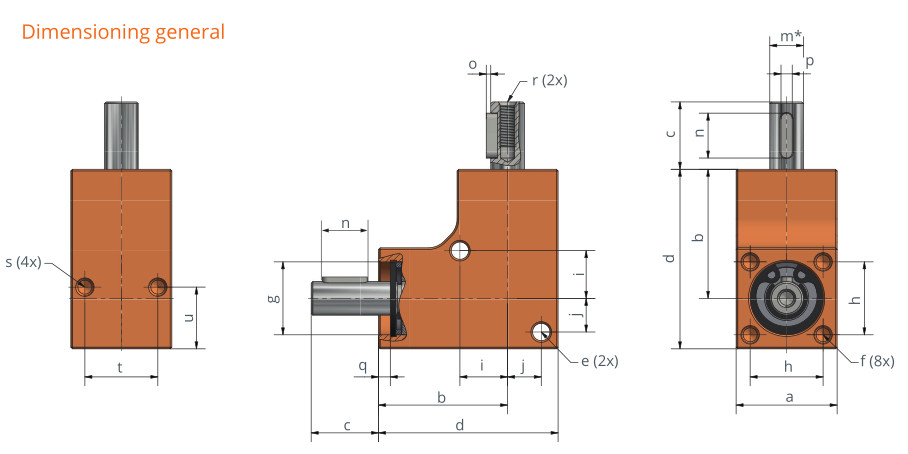

Dimensions in mm | ||||||||||||||||||
| a | b | d | e | f | g | h | i | j | q | s | t | u | |||||||
| 2000 | 15 | 18.5 | 26 | ø2.6 | M2.5x5 | ø11 | 11 | 8 | 4.5 | 1.1 | M2.5x5 | 11 | 9 | ||||||
| 2001 | 18 | 23 | 32 | ø3.1 | M3x10 | ø13 | 13 | 8.5 | 6 | 2.1 | M3x6 | 13 | 11 | ||||||
| 2002 | 20 | 25 | 35 | ø3.1 | M3x10 | ø16 | 15 | 10 | 7 | 2.05 | M3x6 | 15 | 10 | ||||||
| 2003 | 24 | 30 | 42 | ø4.1 | M4x10 | ø19 | 18 | 12 | 8 | 2 | M4x8 | 18 | 16 | ||||||
| 2004 | 26 | 33 | 46 | ø4.1 | M4x10 | ø21 | 20 | 13 | 9 | 2 | M4x8 | 20 | 16 | ||||||
| 2005 | 30 | 38 | 53 | ø4.1 | M4x10 | ø24 | 22 | 15 | 11 | 2.1 | M4x8 | 22 | 16 | ||||||
| 2006 | 32 | 40 | 56 | ø4.1 | M4x10 | ø28 | 24 | 17 | 12 | 2.1 | M4x8 | 24 | 16 | ||||||
| 2007 | 35 | 42.5 | 60 | ø4.1 | M4x10 | ø30 | 26 | 17.5 | 13.5 | 2.1 | M4x8 | 26 | 16 | ||||||
| 2008 | 40 | 48 | 68 | ø5.1 | M4x10 | ø32 | 30 | 20 | 15 | 2 | M5x10 | 30 | 20 | ||||||
| 2009 | 45 | 54.5 | 77 | ø5.1 | M4x10 | ø37 | 35 | 22.5 | 17.5 | 3.3 | M5x10 | 35 | 20 | ||||||
Gearboxtype |
ø Shaft | Shaftlenght | Dimensions featherkey | Threaded hole inside | Item- Nr. | ||
| m* | c | n | o | p | r | ||
| 2000 | ø4j5 | 10 | 0 | 0 | 0 | M2.5x5 | 2000.00-LXA04R1 |
| 2001 | ø6j6 | 12 | 8 | 0.8 | 2 | M3x8 | 2001.00-LXA06R1 |
| 2002 | ø6j6 ø8j6 |
12 12 |
8 8 |
0.8 0.8 |
2 2 |
M3x6 M3x8 |
2002.00-LXA06R1 2002.00-LXA08R1 |
| 2003 | ø8j6 ø10j6 |
16 16 |
10 12 | 0.8 0.8 |
3 4 |
M4x8 M4x8 |
2003.00-LXA08R1 2003.00-LXA10R1 |
| 2004 | ø8j6 ø12j6 |
16 16 |
10 12 |
1.2 1.5 |
3 4 |
M4x8 M5x8 |
2004.00-LXA08R1 2004.00-LXA12R1 |
| 2005 | ø8j6 ø12j6 |
16 16 |
10 12 |
1.2 1.5 |
3 4 |
M4x8 M5x8 |
2005.00-LXA08R1 2005.00-LXA12R1 |
| 2006 | ø10j6 ø12j6 |
16 16 |
10 12 |
1.2 1.5 |
3 4 |
M4x8 M5x8 |
2006.00-LXA10R1 2006.00-LXA12R1 |
| 2007 | ø12j6 | 16 | 12 | 1.5 | 4 | M5x8 | 2007.00-LXA12R1 |
| 2008 | ø12j6 | 16 | 12 | 1.5 | 4 | M5x8 | 2008.00-LXA12R1 |
| 2009 | ø12j6 | 16 | 12 | 1.5 | 4 | M5x8 | 2009.00-LXA12R1 |
