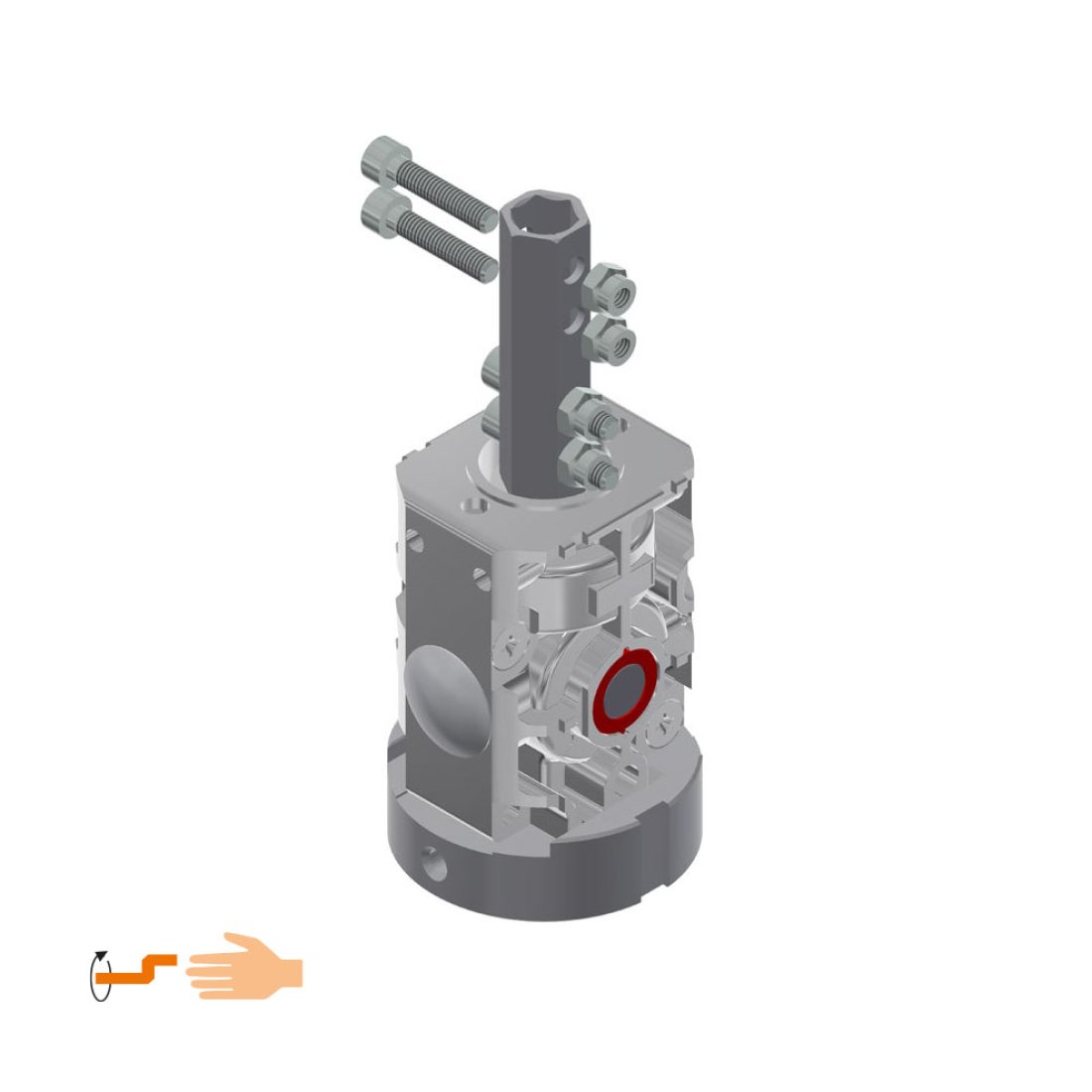

Bevel gear 3056
Description
Compact bevel gearbox for the deflection of a rotary movement at an angle
of 90°. Ideally suited for the adjustment of large parasols. Special bevel
gear toothing ensures smooth running of the gearbox. Drive and output
can be modified for custom applications. The gearbox can be combined
with any spindle.
Special features
- Maintenance-free
- Case-hardened bevel wheels
- Housing made of zinc die-casting
- Ratio 1:2, on request also 1:1 possible
- Designed for the manual operation
Technical notes

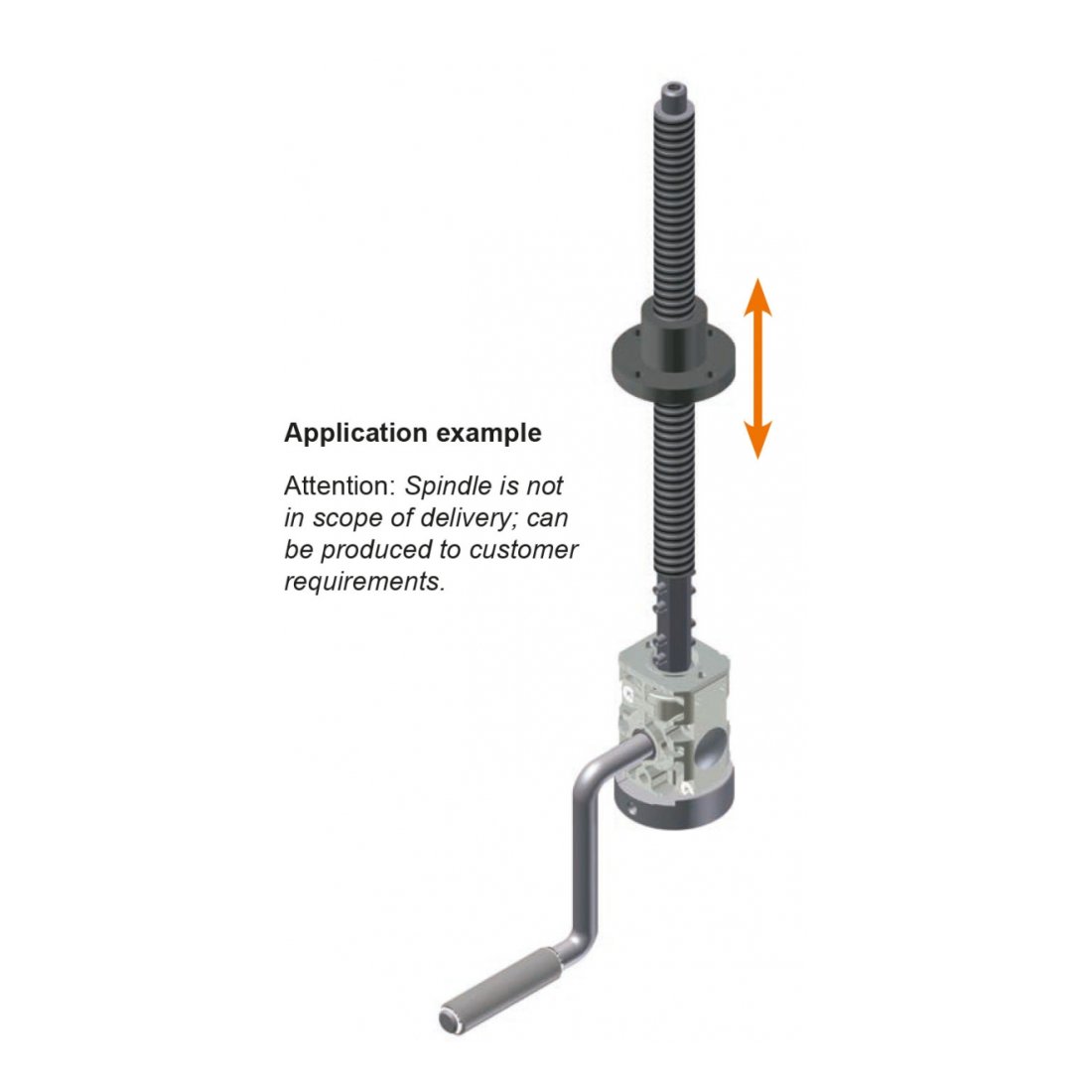

- Attention: Spindle is not in scope of delivery,
can be produced to customer requirements - Depending of the spindle pitch the self-locking of the system must be checked
| Model | 3056.00-2000 |
| Ratio | 1:2 |
| Input | hex 6 mm |
| Output | hex 9 mm |
| Number of bevel wheels | 2 |
| Housing material | Zinc die-casting |
| Max. drive torque | 6 Nm |
| Max. traction load static short term* | 8,000 N |
| Max. pressure load static short term* | 5,000 N |
* Peak load, e.g. caused by gusts of wind
