Controls
Description
Compact is the control unit for hight adjustable workstations and is matched to all Ketterer drives.
With one control unit can be controlled:
- up to three drives in parallel structure (one or two drives follow the master drive)
- two drives synchronously (drives are individually controlled)
Special features

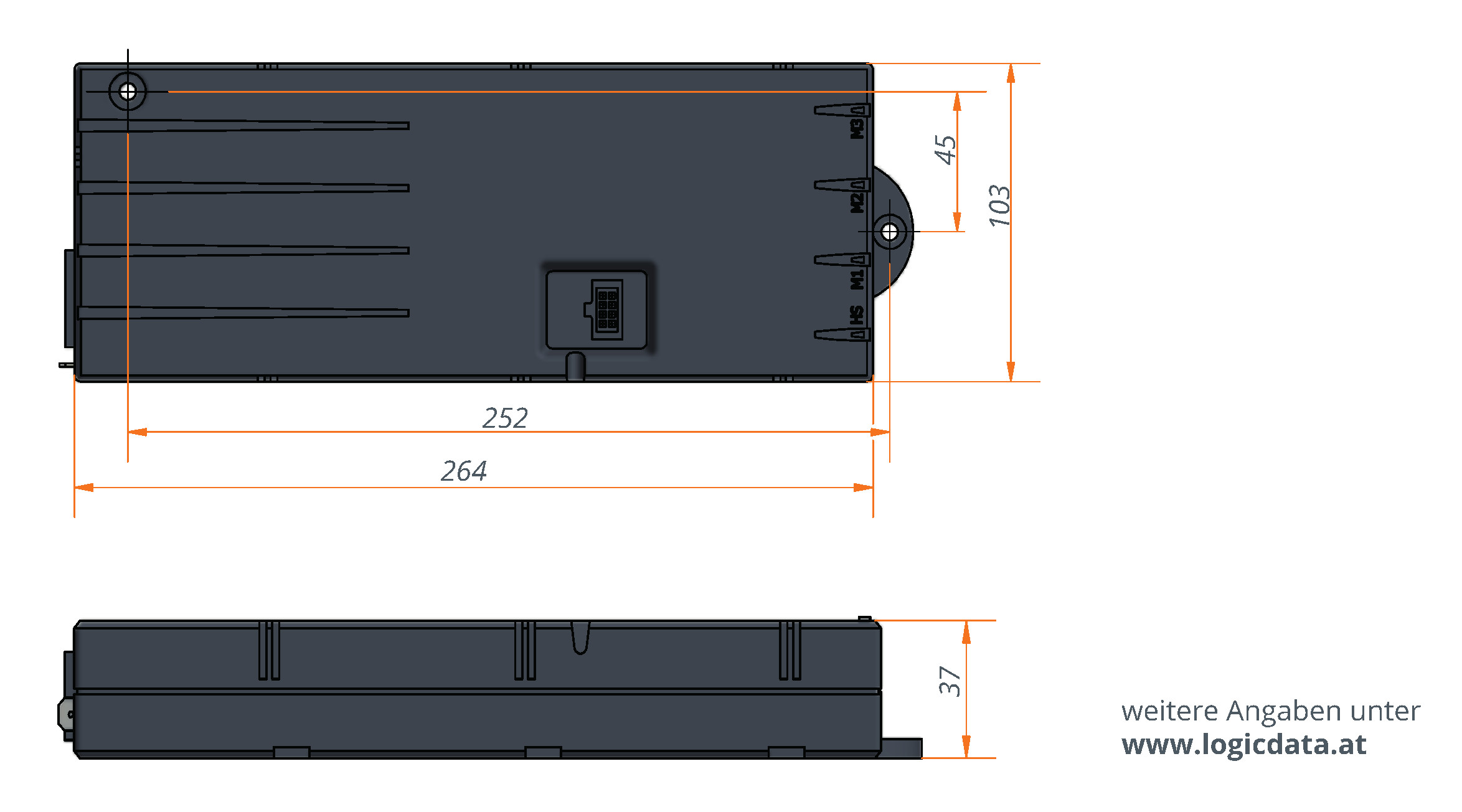

- Control box Compacteco, Firmware-Version 1.9
- Voltage supply variants: 230 V and 110 V
- Freely stroke with hand switch with display (HSU-MDF-4M2-LD or TOUCHfx) programmable
- Ketterer can preprogram a desired stroke
- Duty cycle 2 min. ON/ 18 min. OFF
- Power cable has to be ordered separately
Technical notes
- For stroke programming or changing on site a hand switch with display is always required (see hand control and motor cables).
- Please note the permissible duty cycle of the controller. If the operating times are exceeded the controller switches off automatically.
- Attention: Electric drives usually have a shorterduty cycle than controllers and are thus system-leading.
|
Control box |
Description |
Drives for use with |
|
1000.49-36 / Compact-e-3-KTS-4778-EU |
one to three motors parallel |
(4778, 4779)** |
|
1000.49-46 / Compact-e-3-KTS-4778-US |
one to three motors parallel |
|
|
1000.49-37 / Compact-e-3-KTS-4779-EU |
one to three motors parallel |
|
|
1000.49-47 / Compact-e-3-KTS-4779-US |
one to three motors parallel |
|
|
1000.49-01 / Compact-e-3-KTS-4630-EU |
one to three motors parallel |
(3143.00-V01/ V02)* (4114, 4630, 4773) * 4643 ** |
|
1000.49-02 / Compact-e-3-2-KTT-4630-EU |
two motors synchronous |
|
|
1000.49-11 / Compact-e-3-KTS-4630-US |
one to three motors parallel |
|
|
1000.49-12 / Compact-e-3-2-KTT-4630-US |
two motors synchronous |
|
| 1000.49-28 / Compact-e-3-KTS-3143.00-V03-EU | one to three motors parallel | 3143.00-V03** |
| 1000.49-29 / Compact-e-3-2-KTT-3143.00-V03-EU | two motors synchronous | |
| 1000.49-38 / Compact-e-3-KTS-3143.00-V03-US | one to three motors parallel | |
| 1000.49-39 / Compact-e-3-2-KTT-3143.00-V03-US | two motors synchronous | |
|
1000.49-03 / Compact-e-3-KTS-3130-EU |
one to three motors parallel |
(3120, 3121, 3130)** |
|
1000.49-04 / Compact-e-3-2-KTT-3130-EU |
two motors synchronous |
|
|
1000.49-13 / Compact-e-3-KTS-3130-US |
one to three motors parallel |
|
|
1000.49-14 / Compact-e-3-2-KTT-3130-US |
two motors synchronous |
|
|
1000.49-05 / Compact-e-3-KTS-3122-EU |
one to three motors parallel |
3122 ** |
|
1000.49-06 / Compact-e-3-2-KTT-3122-EU |
two motors synchronous |
|
|
1000.49-15 / Compact-e-3-KTS-3122-US |
one to three motors parallel |
|
|
1000.49-16 / Compact-e-3-2-KTT-3122-US |
two motors synchronous |
|
|
1000.49-09 / Compact-e-3-KTS-3133.00-EU |
one to three motors parallel |
3133.00 |
|
1000.49-10 / Compact-e-3-2-KTT-3133.00-EU |
two motors synchronous |
|
|
1000.49-19 / Compact-e-3-KTS-3133.00-US |
one to three motors parallel |
|
|
1000.49-20 / Compact-e-3-2-KTT-3133.00-US |
two motors synchronous |
|
|
1000.49-07/ Compact-e-3-KTS-3133.48-EU |
one to three motors parallel |
3133.48 ** |
|
1000.49-08 / Compact-e-3-2-KTT-3133.48-EU |
two motors synchronous |
|
|
1000.49-17 / Compact-e-3-KTS-3133.48-US |
one to three motors parallel |
|
|
1000.49-18 / Compact-e-3-2-KTT-3133.48-US |
two motors synchronous |
* Motor cable 4138.53-01/ Length 1 m or 4138.53-02/ Length 2 m
** Motor cable 3122.53-02/ Length 1.75 m
| Power cable | Connector | |
| 3143.53-22 / Power cable LOG-CBL-PWK | plug for control with 3-pin Schuko | - Europe |
| 3143.53-23 / Power cable LOG-CBL-PWK-UK | for control with 3-pin plug | - UK |
| 3143.53-24 / Power cable LOG-CBL-PWK-DK | for control with 3-pin plug | - Denmark |
| 3143.53-25 / Power cable LOG-CBL-PWK-SW | for control with 3-pin plug | - Switzerland |
| 3143.53-28 / Power cable LOG-CBL-PWK-USA | for control with 3-pin plug | - USA |
