DC-Motor drive 3143
Description
Powerful 24 V DC motor with worm gear and through going hexagon socket. Although the drive was developed for ergonomic table applications, it can be used in many other fields. A cable with connector and an integrated Hall sensor allows easy and secure control of the entire system.
Special features
- Two integrated Hall sensors for measurement of the revolutions and direction of rotation
- Through going hexagon socket in wrench widths 6 mm, 7 mm, 9 mm
- Available as “power package” or as “high speed” variant
- Depending on variant: 1.2 m (variants: V01 / V02) or 0.1 m (variant V03) Motor cable with plug included
- Good self-locking properties
- Can be combined with all Ketterer spindle systems
Technical notes
- The drive working range (rated torque) is determined for a service life of 10,000 double strokes in table applications.
- By using a controller with a short-circuit brake the holding torque position of the drive can be increased
- Through the controller (in combination with LogicData control box Compact-3) the system is regulated such that the speed in the entire drive working range is kept as constant as possible
| Model |
3143.00-V01A06KSMS
3143.00-V01A07KSMS 3143.00-V01A09KSMS |
3143.00-V02A06KSMS 3143.00-V02A07KSMS 3143.00-V02A09KSMS |

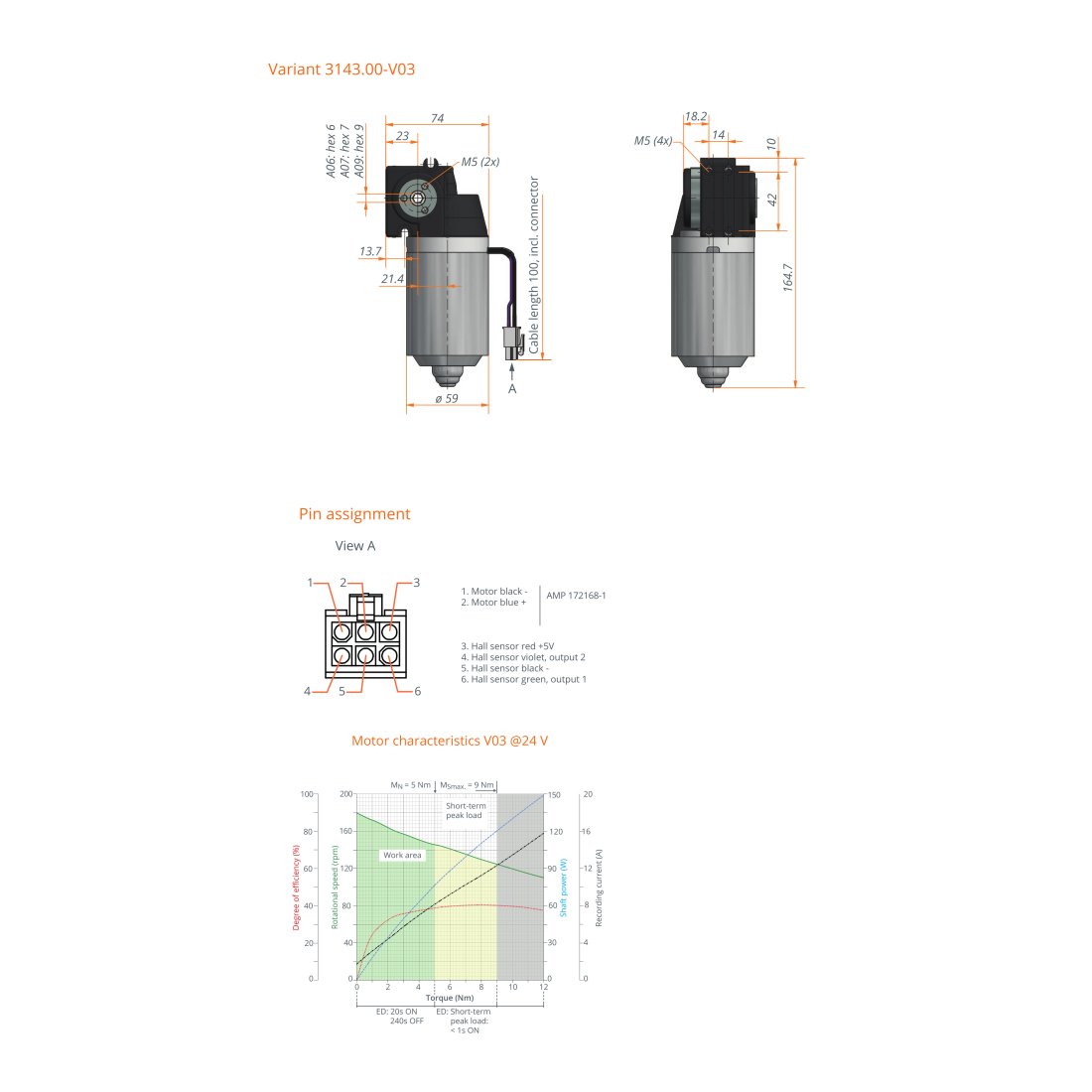

3143.00-V03A06K1MS 3143.00-V03A07K1MS 3143.00-V03A09K1MS |
| Shop |  |
|
|
| Drive motor | DC Motor 24 V | DC Motor 24 V | DC Motor 24 V |
| Voltage range | 12 V -32 V | 12 V -32 V | 12 V -32 V |
| Sensor/Supply | Hall/5 V DC/0.3 A | Hall/5 V DC/0.3 A | Hall/5 V DC/0.3 A |
| Type of protection | IP30 | IP30 | IP30 |
| Idle speed | 115 rpm (24 V) 120 rpm * | 230 rpm (24 V) 240 rpm * | 180 rpm |
| Duty cycle in idle mode | 20% (at 5 min.) | 20% (at 5 min.) | 20% (at 5 min.) |
| Rated torque** | 5 Nm | 2.8 Nm | 5 Nm |
| Rated current | 3.9 A bei 5 Nm | 4 A bei 2,8 Nm | 8,2 A bei 5 Nm |
| Rated speed* | 105 rpm (24 V) | 210 rpm (24 V) | 150 rpm |
| Duty cycle at rated load** | 20 s ON 240 s OFF | 20 s ON 240 s OFF | 20 s ON 240 s OFF |
| Short-term peak torque (<1s) | 9 Nm | 5 Nm | 9 Nm |
| Drive |
A06: hex 6 mm
A07: hex 7 mm A09: hex 9 mm |
A06: hex 6 mm A07: hex 7 mm A09: hex 9 mm |
A06: hex 6 mm A07: hex 7 mm A09: hex 9 mm |
| Suitable control unit*** (Control 2 drives synchronously) | LogicData Compact-3
EU: 1000.49-02 US: 1000.49-12 | LogicData Compact-3
EU: 1000.49-29 US: 1000.49-39 |
|
* In combination with LogicData control box Compact-3
** Load determined for service life of 10,000 double strokes (in table applications)
*** For further variants see chapter accessories / controls
