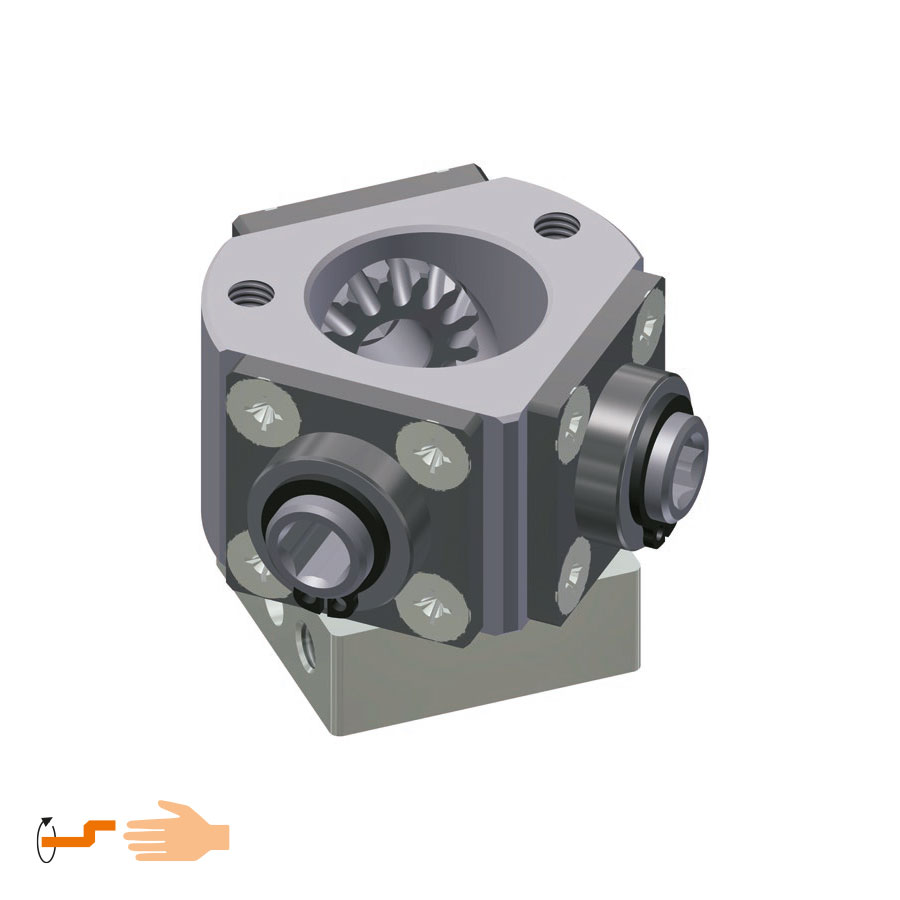

Deflection gear unit 3014
Description
Bevel gear family for use as a deflection gear in up to three directions. Deflection of rotational movement possible at angles of 90°, 120°, 135°. Upon request the number of drive wheels can be varied. Simple screw mounting on the adaptor facilitates uncomplicated assembly.
Special features
- Maintenance-free
- Case hardened steel bevel wheels
- Housing made of reinforced glass-fibre or aluminium at an angle of 90°/120°/135°
- Downward ratio 1.3:1, ratio in direction of deflection 1:1
- Designed for the manual operation
| Model | 3014.00-0069 | 3014.00-0070 | 3014.00-0071 | 3014.00-0082 |
| Shop |  |
|
||
| Ratio in direction of deflection | 1:1 | 1:1 | 1:1 | 1:1 |
| 90° downward ratio | 1.3:1 | 1.3:1 | 1.3:1 | 1.3:1 |
| Input/Output | hex 6 mm | hex 6 mm | hex 6 mm | hex 6 mm |
| Number of bevel wheels | 4 | 4 | 3 | 3 |
| Max. drive torque | 3 Nm | 3 Nm | 3 Nm | 3 Nm |
| Housing/angle | 3 x 120° | 2 x 135° | 120° | 135° |
| Material | Aluminium | Aluminium | Plastic | Plastic |
3D data (in STEP format) is saved as a zip file on your computer. After unpacking the files, you can open and view the data with an STP viewer (e.g. the free Autodesk Viewer). To download our 3D data, you have to log into your customer account. If you do not yet have a customer account, you can register now.
