Inline spindle drive 3120
Description
Motorized solution for the individual sit-stand workplace. Stepless height adjustment to customer specific stroke.
Special features
A slender design allows to integrate the complete inline actuator into the tube of a table leg.
- Simple mounting
- Integrated position measuring system
- Single telescopic function
Customer specific
As a result of the modular design it is possible to meet spezial customer requirements even for small quantities. The actuator can be supplied with various spindle lengths and different spindle pitches.
Caution
Please take into account that depending on the spindle pitch, the system could back-drive.
| Model | 3120.00-V01EXXXHXXX | 3120.00-V02EXXXHXXX |
| Shop |  |
|
| Motor | DC Motor 24 V | DC Motor 24 V |
| Sensor/Power supply | Hall/5 V DC/0.3 A | Hall/5 V DC/0.3 A |
| Protection class | IP30 | IP30 |

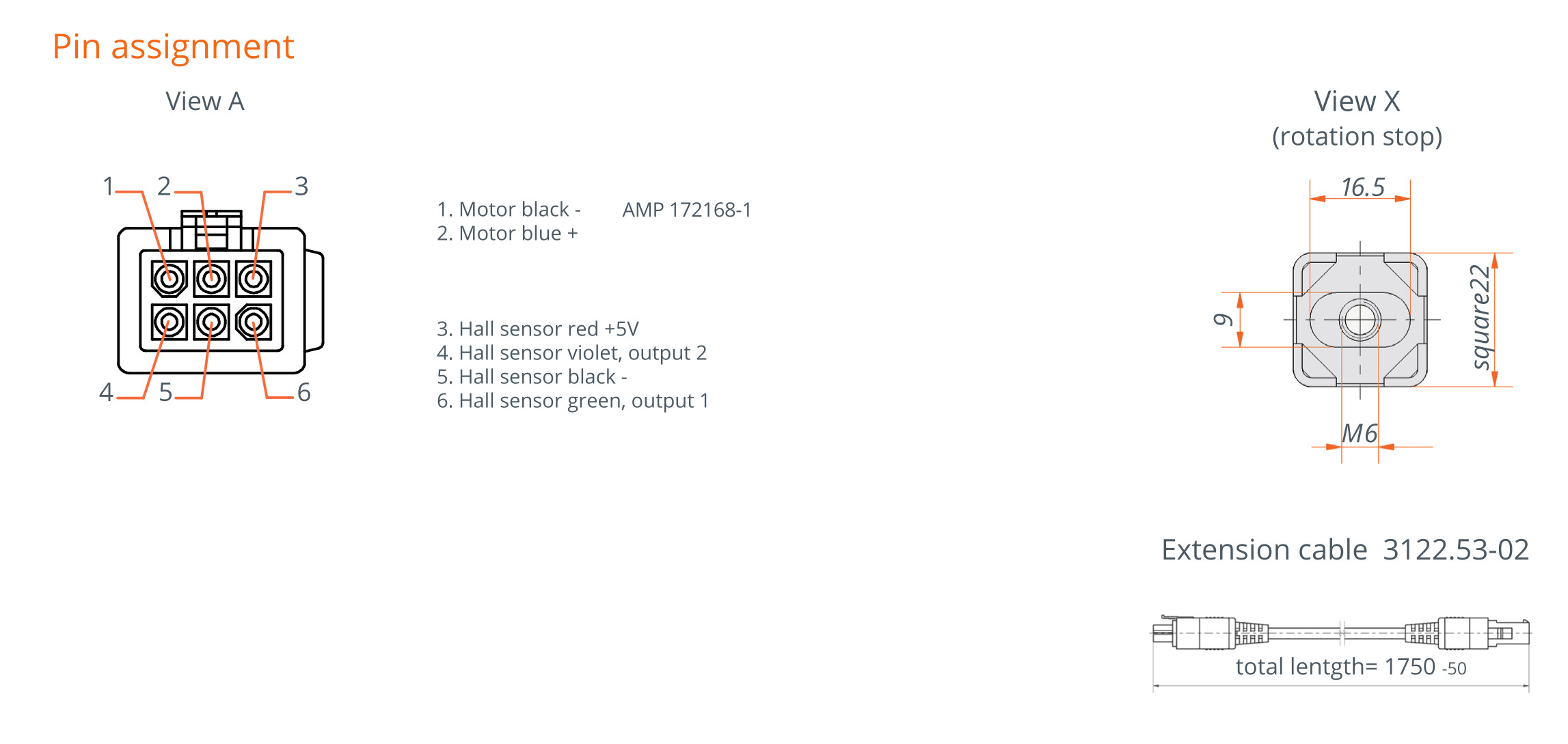

| Cable | 0.1 m / 6 pin | 0.1 m / 6 pin |
| Duty cycle | 20% (at 5 min.) | 20% (at 5 min.) |
| Idle running speed | 100 rpm (24 V) 150 rpm * |
100 rpm (24 V) 150 rpm * |
| Stroke max. | retracted height -111 mm | retracted height -109 mm |
| Type of spindle | SG14x16P4 RH ** | SG14x16P4 RH ** |
| Max. lifting force | 800 N | 800 N |
| Max. drive torque | 3 Nm | 3 Nm |
| Movement speed | 43 mm/s | 43 mm/s |
* in combination with LogicData control box Compact-3
** further types of spindles on request
