Inline spindle drive 3120 Heavy load
Description

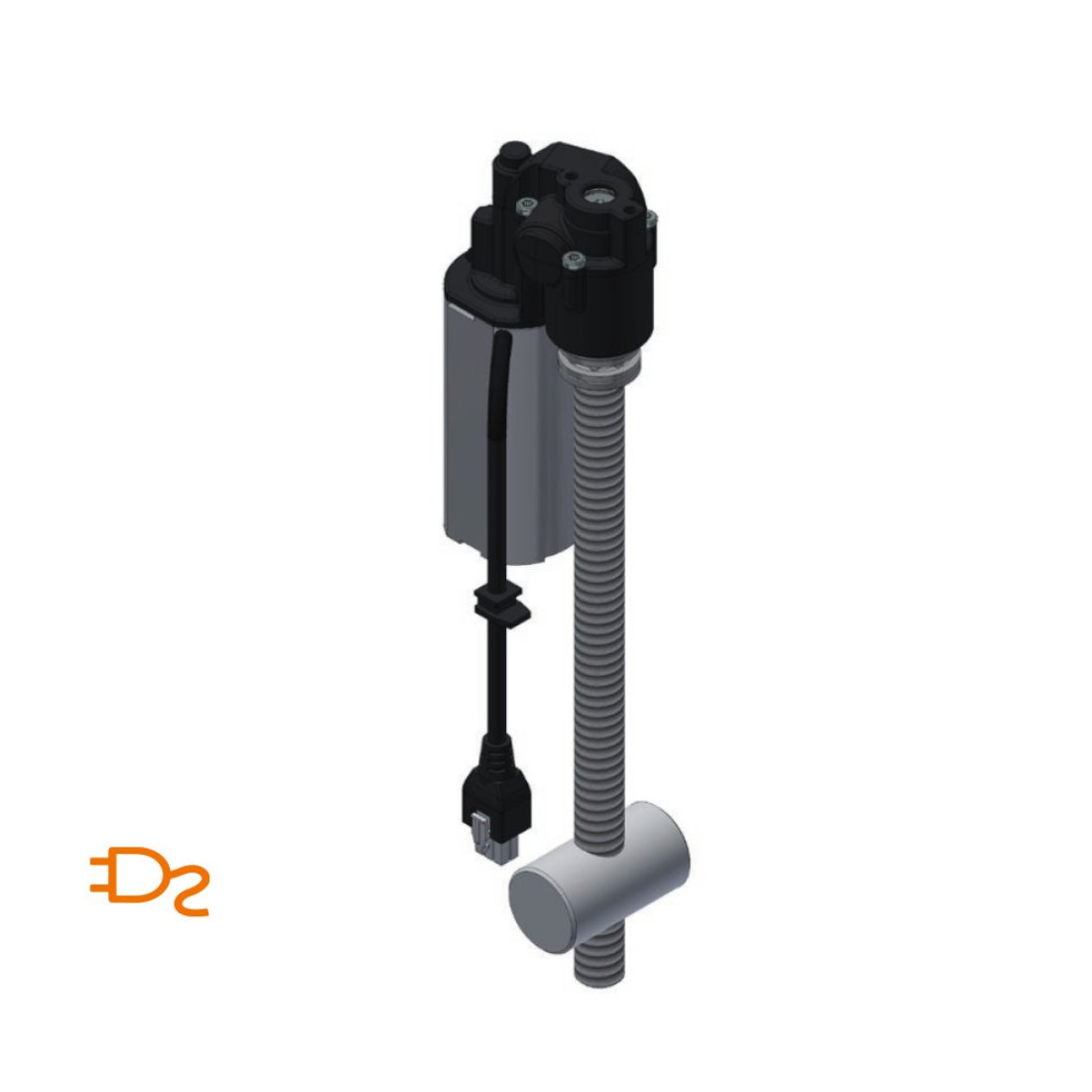

Electric motorized spindle drive with matching spindle nut for stepless stroke adjustment with customized stroke height. Thanks to its slim design, it fits easily into narrow guideways and can move loads of up to 250 kg.
Special features
A slender design allows to integrate the complete inline actuator into the tube of a table leg.
- Slim inline design
- Integrated position measuring system
- Spindle nut made of POM-C included
- Customized spindle length possible
- Spindle and spindle nut can be modified according to customer specifications (spindle type, material, geometry)
Technical notes
- Depending on the spindle pitch, the system could back-drive
- The spindle nut must be screwed directly to the wall of the frame/guide

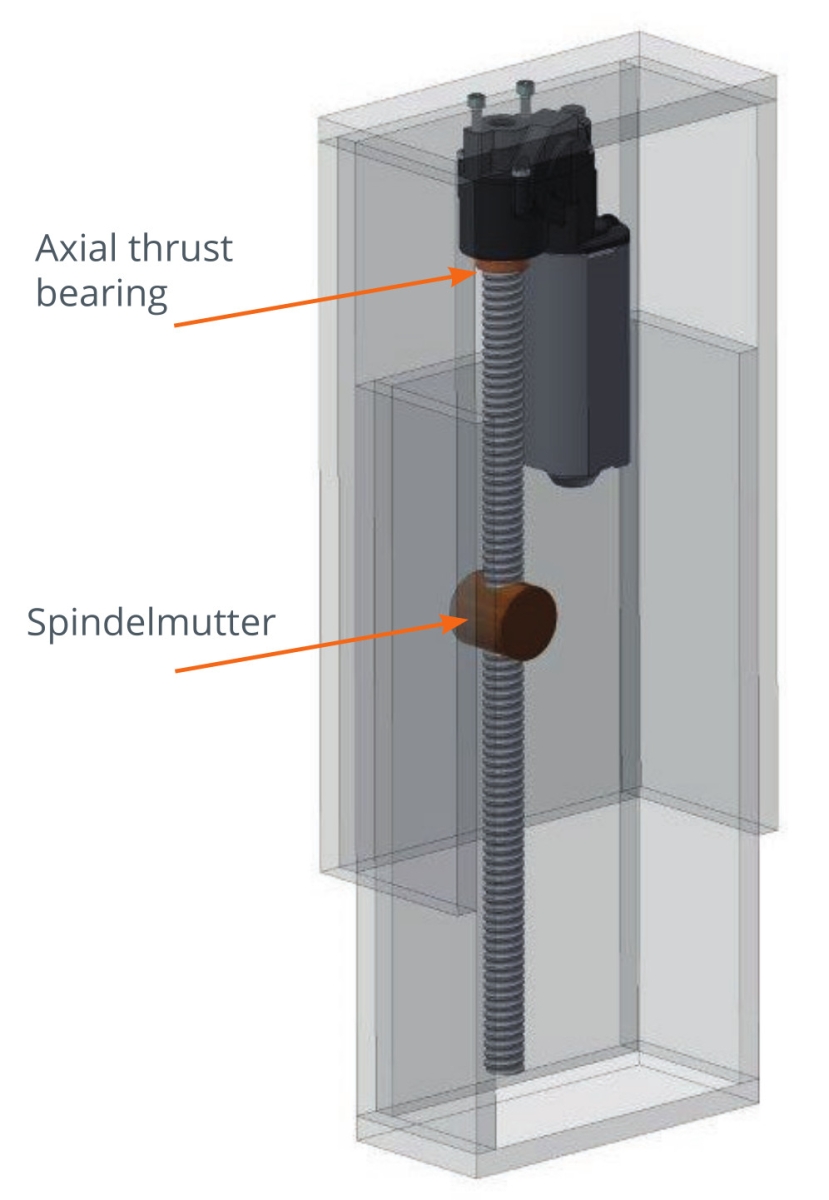

- For a safe load support an axial thrust bearing is installed between drive and spindle
- Suitable motor cable: 3122.53-02
| Model |
3120.00-1000 |
| Shop |  |
| Motor | DC Motor 24 V |
| Sensor/Power supply |
Hall/5 V DC/0.3 A |
| Protection class |
IP30 |
| Duty cycle |
20% (at 5 min.) |
| Idle running speed | 100 rpm (24 V) 150 rpm * |
| Stroke |
430 mm |
| Type of spindle |
Tr16x4RH |
| Max. lifting force |
2500 N |
| Max. drive torque |
5 Nm |
| Movement speed |
10 mm/s |
| Cable |
0.2 m, connector AMP 6 Pin |
* in combination with LogicData control box Compact-3
** further types of spindles on request
3D data (in STEP format) is saved as a zip file on your computer. After unpacking the files, you can open and view the data with an STP viewer (e.g. the free Autodesk Viewer). To download our 3D data, you have to log into your customer account. If you do not yet have a customer account, you can register now.
