t-Rex 3200 I-44-47-L21 S2 (short version, focus rotational speed)
Description

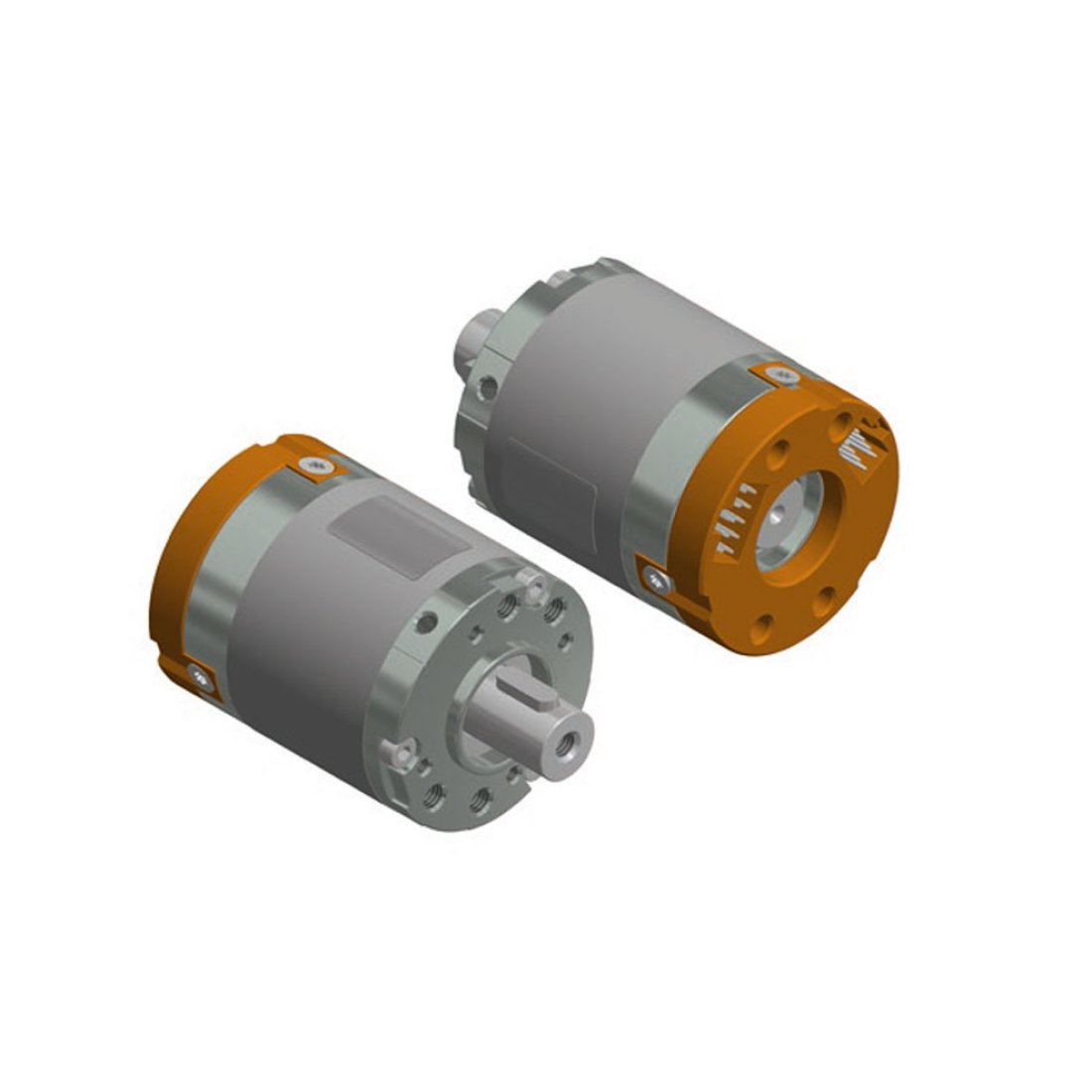

14-pole BLDC motor with high-performance neodymium magnets and three digital Hall sensors to detect the rotor position. The electrical connections are designed as a plug-in system. Additional power electronics are required to operate the motor. Motor design with a hollow shaft is also available upon request. This allows the implementation of output on both sides.
Special features
- Designed with focus on rotational speed
- Enormous performance density – 3 times stronger than motors of comparable size
- High overload resistance
- Ideally suited as direct drive, or generator for gearless applications
- Special winding upon request
- Design and manufacture of motor to specified operating point is possible

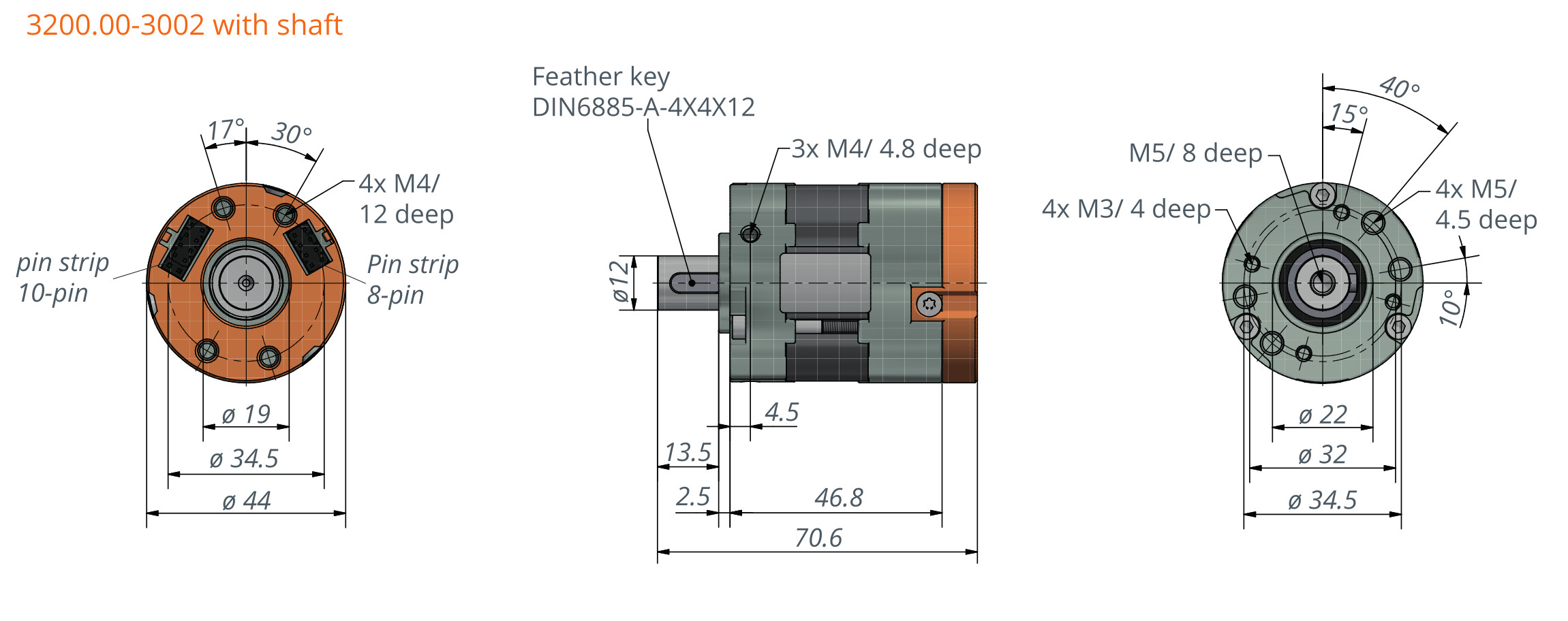

| t-Rex 3200-I-44-47 L21 S2 DH | 3200.00-3002 |
| Shop |  |
| Rated voltage | 24 VDC |
| Rated current | 3.4 A |
| Rated torque | 0.1 Nm |
| Rated speed | 4600 rpm |
| Shaft power (output) | 48 W |
| Max. efficiency | 65 % |
| Idle speed | 5168 rpm |
| No-load current | 1.2 A |
| Stall torque | 1.1 Nm |
| Starting current at idle speed | 24 A |
| Torque constant | 0.047 Nm/A |
| Speed constant | 215 rpm/V |
| Motor parameters | |
| Terminal resistance (phase to phase) | 0.29 Ohm |
| Terminal inductance (phase to phase) | 171 µH |
| Rotor inertia | 9.5 kg* mm² |
| Number of poles | 14 |
| Interconnection of the motor | Star |
| Number of coils per phase | 2 |
| Interconnection of coils | 2 Series |
| Direction of rotation | bidirectional |

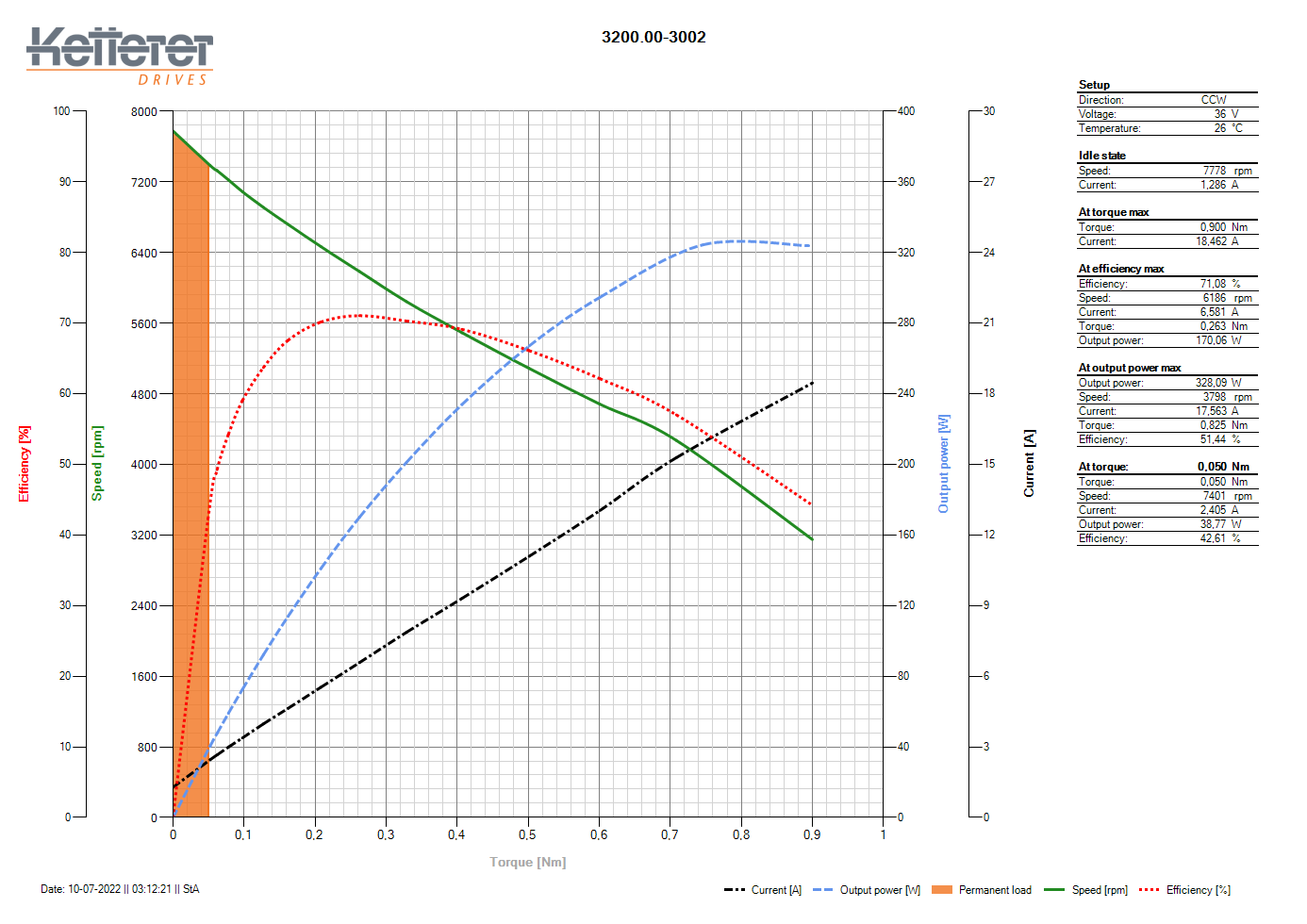

Note:
Max. ambient temperature = 40 °C, controller-specific
At the nominal point (TU = 20°C), controller-specific
Only cyclical operation is possible with 36 V and 48 V
3D data (in STEP format) is saved as a zip file on your computer. After unpacking the files, you can open and view the data with an STP viewer (e.g. the free Autodesk Viewer). To download our 3D data, you have to log into your customer account. If you do not yet have a customer account, you can register now.
