t-Rex 3200 I-44-89-L12 S2 (long version, focus rotational speed)

Description

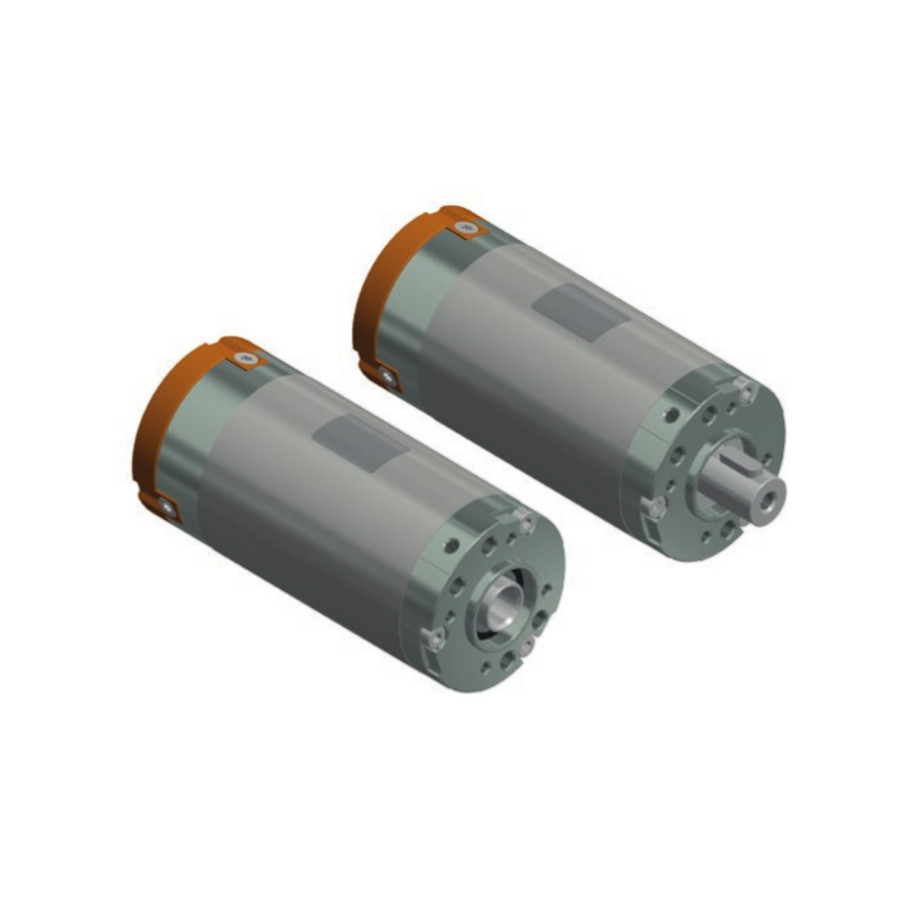

14-pole BLDC motor with high-performance neodymium magnets and three digital Hall sensors to detect the rotor position. The electrical connections are designed as a plug-in system. Additional power electronics are required to operate the motor. Motor design with a hollow shaft is also available upon request. This allows the implementation of output on both sides.

Special features

  • Designed with focus on rotational speed
  • Enormous performance density – 3 times stronger than motors of comparable size
  • High overload resistance
  • Ideally suited as direct drive, or generator for gearless applications
  • Special winding upon request
  • Design and manufacture of motor to specified operating point is possible

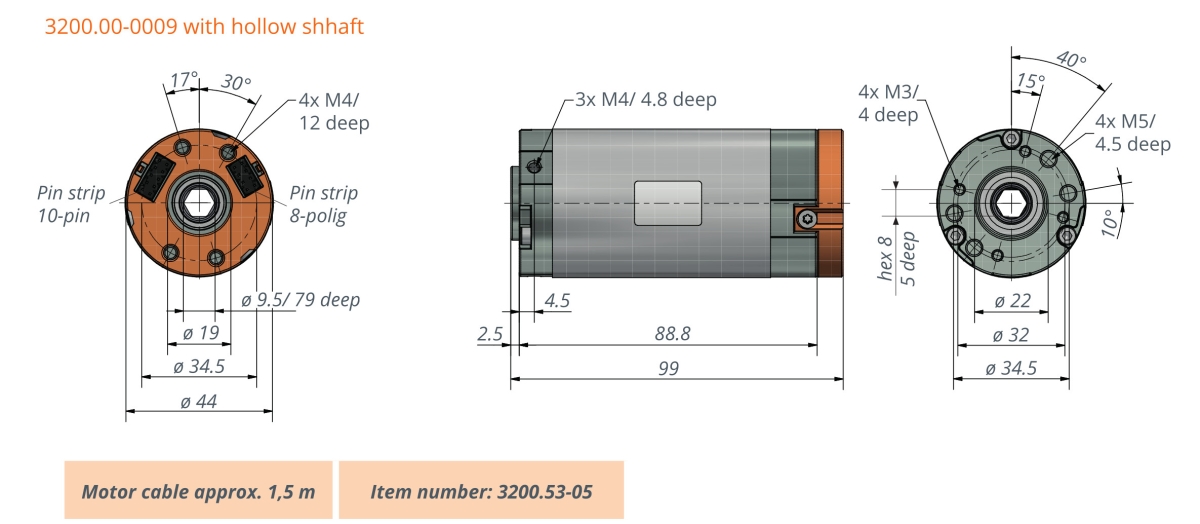

t-Rex 3200 I-44-89 L12 S2 DH 3200.00-0004/3200.00-0009
Shop Ketterer Online-Shop
Rated voltage 24 VDC 36 VDC
Rated current 4.0 A 3.2 A
Rated torque 0.3 Nm 0.2 Nm
Rated speed 2375 1/min 3770 1/min
Shaft power (output) 67 W 78 W
Max. efficiency 74 % 76 %
Idle speed 2680 rpm 4053 rpm
No-load current 0.55 A 0.56 A
Stall torque 2 Nm 2 Nm
Starting current at idle speed 22.8 A 21.8 A
Torque constant 0.09 Nm/A 0.09 Nm/A
Speed constant 112 rpm/V 113 rpm/V



Motor parameters
Terminal resistance (phase to phase) 27 mOhm
Terminal inductance (phase to phase) 45 µH
Rotor inertia 26.5 kg* mm²
Number of poles 14
Interconnection of the motor Star
Number of coils per phase 2
Interconnection of coils 2 Series
Direction of rotation bidirectional

Note:

Max. ambient temperature = 40 °C, controller-specific
At the nominal point (TU = 20°C), controller-specific
Only cyclical operation is possible with 36 V und 48 V
