t-Rex 3206 I-65-86-H36 S2 (long version, focus speed)
Description

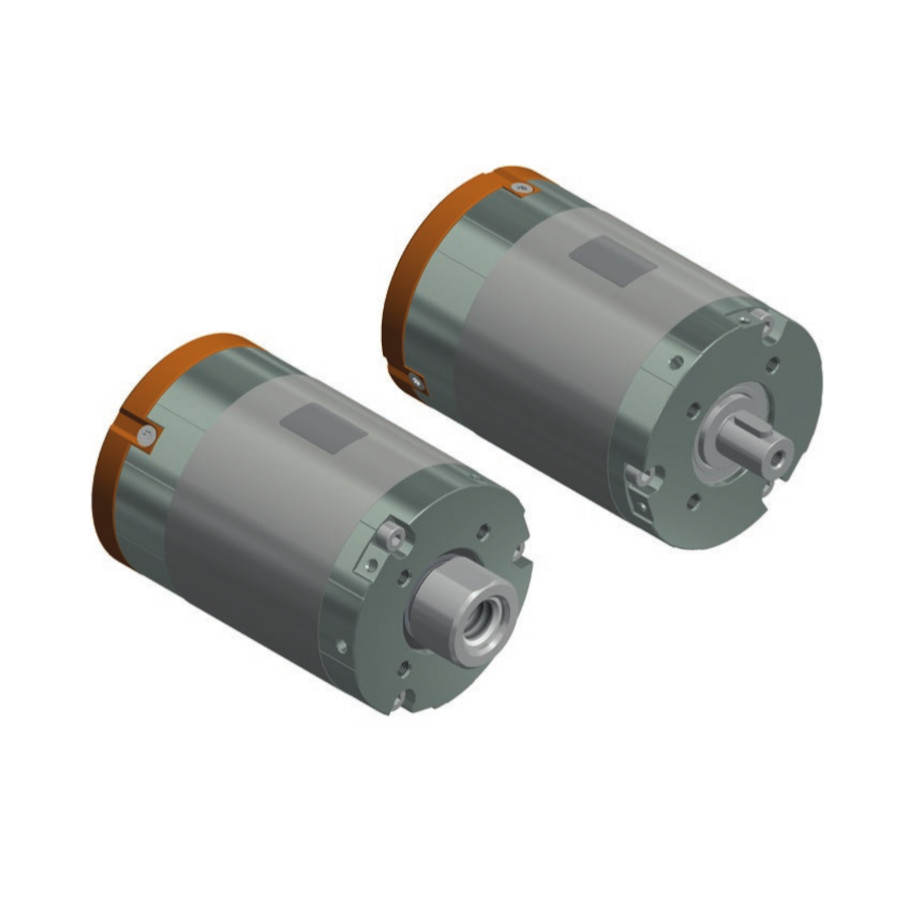

14-pole BLDC motor with high-performance neodymium magnets and three digital Hall sensors to detect the rotor position. The electrical connections are designed as a plug-in system. Additional power electronics are required to operate the motor. The design of the motor with a hollow shaft allows the output on both sides.
Special features
- Designed with focus on max. speed
- Enormous performance density – 3 times stronger than motors of comparable size
- High overload resistance
- Ideally suited as direct drive, or generator for gearless applications
- Special winding upon request
- Design and manufacture of motor to specified operating point is possible
| t-Rex 3206 I-65-86 L36 S2 DH |
3206.00-0004 | ||
| Rated voltage | 24 VDC | 36 VDC | 48 VDC |
| Rated current | 7.2 A | 6.5 A | 5.8 A |
| Rated torque | 1.3 Nm | 1.2 Nm | 1 Nm |
| Rated speed | 1100 rpm | 1950 rpm | 2600 rpm |
| Shaft power (output) | 150 W | 208 W | 248 W |
| Max. efficiency | 88 % | 90 % | 89 % |
| Idle speed | 1300 rpm | 1950 rpm | 2600 rpm |
| No-load current | 0.4 A | 0.6 A | 0.6 A |
| Stall torque | 7 Nm | 6 Nm | 5 Nm |
| Starting current at idle speed | 38 A | 31 A | 26 A |
| Torque constant | 0.183 Nm/A | 0.195 Nm/A | 0.192 Nm/A |
| Speed constant | 54 rpm/V | 54 rpm/V | 54 rpm/V |
| Motor parameters | |
| Terminal resistance (phase to phase) | 247 mOhm |
| Terminal inductance (phase to phase) | 372 µH |
| Rotor inertia | 104 kg* mm² |
| Number of poles | 14 |
| Interconnection of the motor | Triangle |
| Number of coils per phase | 2 |
| Interconnection of coils | 2 Series |
| Direction of rotation | bidirectional |
Note:
Max. ambient temperature = 40 °C, controller-specific
At the nominal point (TU = 20°C), controller-specific
