Worm gear reducer Ket-Motion 2020 P

with feather key groove

Description

Universally usable and maintenance-free worm gear reducer with an axis distance of 20 mm and with nine different reduction ratios. The aluminium or zinc housing is encapsulated to prevent the escape of grease and the ingress of dust. The worm gear pair is left-handed. The direction of rotation on the shaft is arbitrary.

Special features

  • Axis distance 20 mm
  • Maintenance-free grease lubrication
  • Aluminium housing, anodized or Zinc housing in a material-saving design
  • 9 reduction ratios of 1:1 to 65:1
  • Backlash on the drive shaft 1° ± 0.5°, (for i=1:1 2°± 0.5°)
  • Duty cycle of 20 % at 5 min (1 min ON, 4 min OFF)
  • Lifetime of 1,000 hours with:
    • full load and
    • input speed of 500 rpm and
    • duty cycle 20% with 5 min and
    • ambient temperature

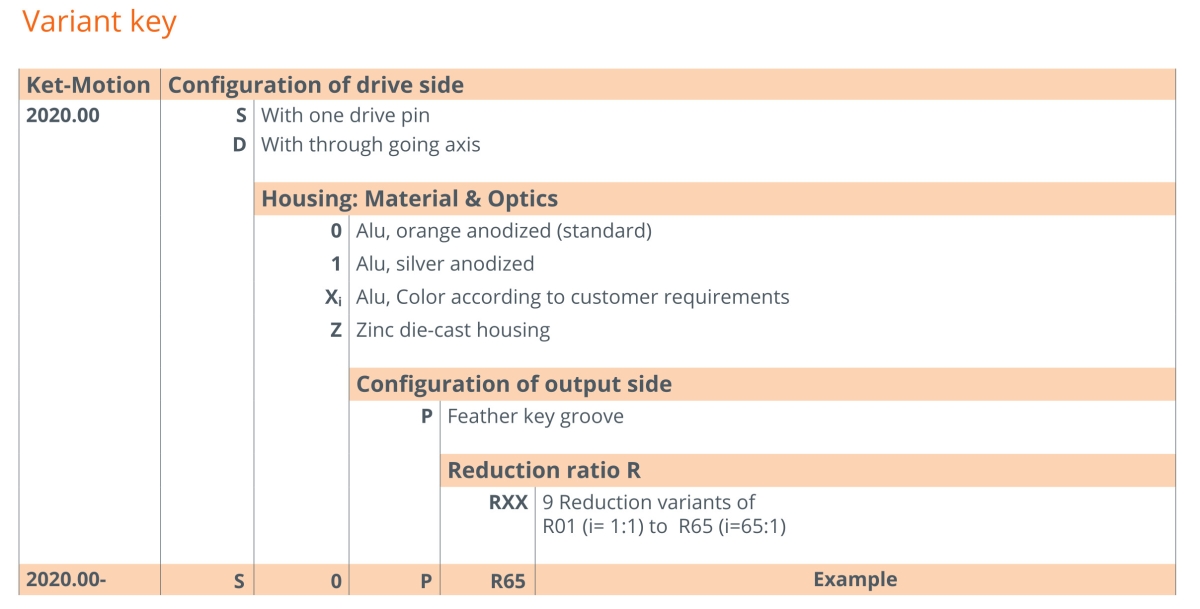

Variant key

  • The Worm gear Ket-Motion 2020 D is available in different variants. The variants are composed in accordance with the ordering code shown on the data sheet.

Technical notes

  • Variant with turntable: ;Permissible forces on drive side FA= 1,500 N
  • The positions of the feather keys as standard in variant D are not in line. Possible on enquiry if needed
Item numberShop Self-locking static Output speed range n in rpm Max. output torque M in Nm Max. drive torque M in Nm Drive side Degree of efficiency in %
Radial force1) FR in NAxial force2) FA in N
2020.00-SXPR65
2020.00-DXPR65
Ketterer Online-Shop Yes 100/500/1000 4.5/3.8/3 0.2/0.2/0.2 500 500 29
2020.00-SXPR40
2020.00-DXPR40
Ketterer Online-Shop Yes 100/500/1000 5.5/4.8/4 0.4/0.3/0.3 400 400 39
2020.00-SXPR30
2020.00-DXPR30
Ketterer Online-Shop No 100/500/1000 8.5/7/5.5 0.6/0.5/0.4 350 350 45
2020.00-SXPR23
2020.00-DXPR23
Ketterer Online-Shop No 100/500/1000 10/8/6 0.9/0.7/0.5 250 250 50
2020.00-SXPR18
2020.00-DXPR18
Ketterer Online-Shop No 100/500/1000 11/9/7 1.1/0.9/0.7 250 250 55
2020.00-SXPR15
2020.00-DXPR15
Ketterer Online-Shop No 100/500/1000 12/10/8 1.5/1.3/1 250 250 52
2020.00-SXPR13
2020.00-DXXPR13
Ketterer Online-Shop No 100/500/1000 15/13/11 2.1/1.8/1.5 200 200 56
2020.00-SXPR05
2020.00-DXPR05
Ketterer Online-Shop No 100/500/1000 10/8/6 2.9/2.3/1.7 200 200 70
2020.00-SXPR01*
2020.00-DXPR01*
Ketterer Online-Shop No 100/500/1000 1.5/1/0.65 2.1/1.4/0.9 250 250 73

1) The values of FR apply only when FA = 0 N
2) The values of FA apply only when FR = 0 N
* Backlash on the output shaft 2°± 0.5°
